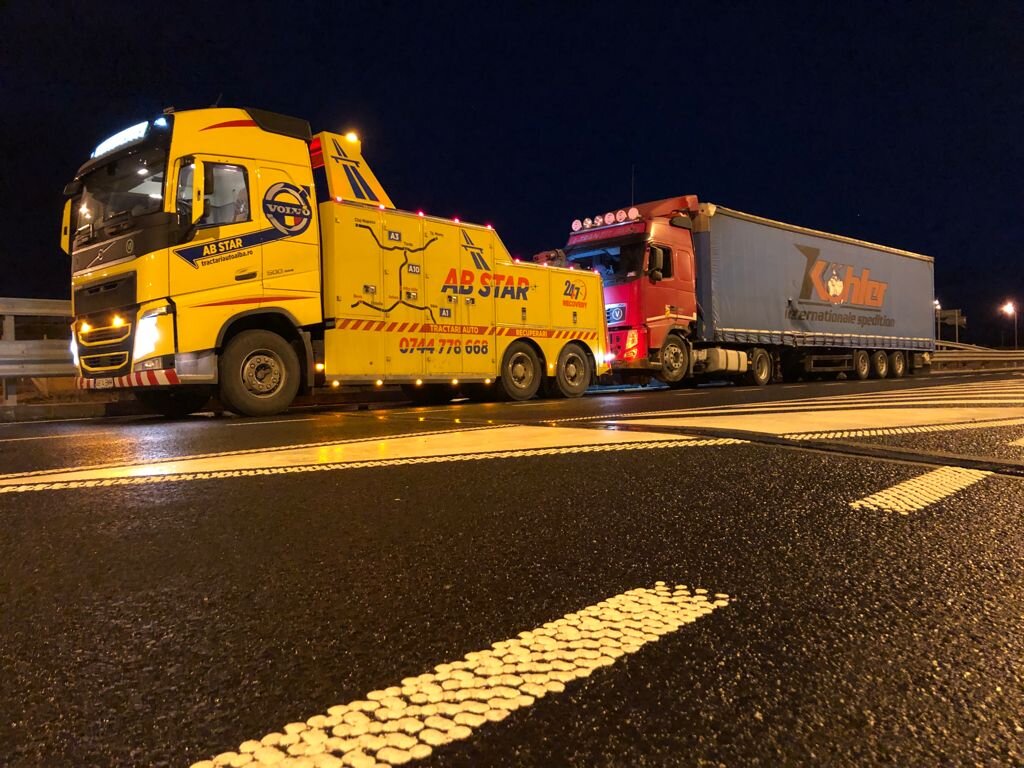

ESSEL Recovery
MODEL ER3317
A special type of superstructure with the possibility of mounting on various types of chassis, used for recovery of crashed or broken vehicles of heavy weight.
Designed and manufactured with a sense for detail. You can rely on it.
33t
Maximum lifting capacity of main crane jib
17t
Maximum loading capacity of main boom with underlift
3,2m
Maximum length of main crane jib
Standard equipment
Chassis
axel 3, 4
wheel base approx. 5,6m
min front axle capacity 9t
equipped with power take off (PTO) engine / gear
Subframe
made of high tensile steel
sandblasted, prime and top coated for maximum resistance against corrosion
fixed to the truck frame acc. to manufacturer ´s specification
Support legs
back legs in A shape
made of high tensile steel in rectangular sections
independently and hydraulically operated
toothed spades for maximum grip
max. extension 580mm
Crane boom
one extension
max. lifting capacity of main crane jib - retracted 33t, extended 10t
dimension of extended main crane jib - length 3,2m
max. lifting angle 32°
Under-lift
made of high tensile steel plates
fitted with extendable hydraulically operated underlift
two extensions 2x1150 mm
underlift supplied with tilting arm with angle +19° -12°
maximal loading capacity of main boom with underlift - retracted on pin 17 t, extended 8t
Winches
2pcs of winches, 15t and 10t
rope length 60m
rope diameter 16-20mm
Body panels
made of stainless steel thickness 3mm
hanging brackets
rubber mats thickness 23mm
anti-spray mudflaps (beside G chassis)
lights turn on automatic by PTO on
compartments for hydraulic distributor
compartments with lockable doors with key, with rubber strip sealing
inside hinges made of stainless steel thickness 5mm
adjustable stopper for angle of open doors
easy access to fuel tank and Ad Blue
Hydraulic system
oil tank 100l
hydraulic pump with connection to PTO
working pressure in hydraulic system 20MPa
oil flow 50-80l/min
2 distributors (7 + 2 sections)
hydraulic oil cooler
Electric system
tailor made electrical box - ESSELTRONIC
remote control
working lights on winch, on flyer, by support legs
orange lights on sides of body panels
flashing lights in front 4pcs
flashing lights on flyer 2pcs
light bar on the flyer
combined auto lights on flyer
control of lights from cabin, from the remote control, from the distributor
Body panels
Central lock system
Heating
Inner painting
Hydraulics
Air drums
Manual central greasing
Electricity
Extra rotating working lights
Extra working lights
Radio control
Camera on flyer and on underlift
Light bar on a cabin
Telescopic light bar
Front flashing lights 6pcs
…
…
